| Brand Name : | SENDA |
| Model Number : | SD004 |
| Certification : | ISO9001 |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union |
| Delivery Time : | 30-35days |

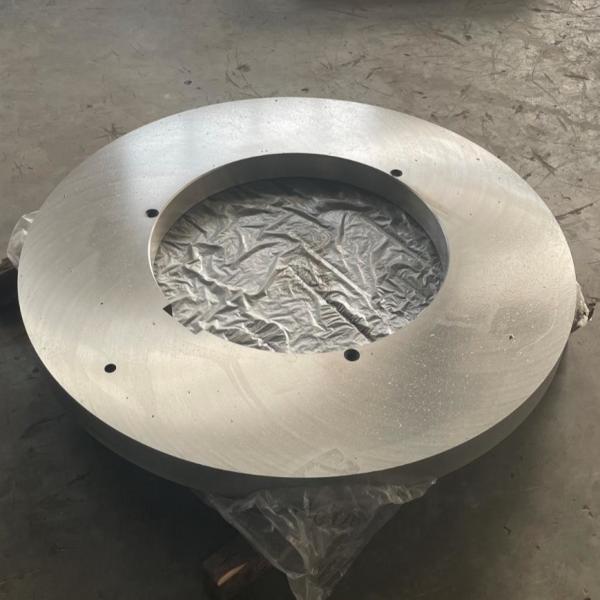

Large diameter sheet metal slitter machine rotary slitting knives for stainless steel coils and sheets
Senda sheet metal rotary slitting knives for metal sheet processing are mainly applied to sheet metal slitter machines. Metal slitting blades cut for cold milling sheets, we often use LD, HMY material for thick plate and coil cutting. And for hot milling sheets, we often recommend to use H13, H13K, HMB material to do the slitting for durable under high temperature. With our experience, we offer the best suitable metal sheet sltting blade for your metal sheet slitter systems.
| Brand | Senda |
| Country of Origin | China |
| Material | D2, M2, HSS, KL-56 etc |
| Size: | Customized |
| Thickness tolerance | +- 0.001mm |
| Inner Diameter | +0.02mm |
| Flatness | ≤0.002mm |
| Parallelism | ≤0.002mm |
| Concentricity | ≤0.02mm |
| Surface roundness | Ra 0.1um |
| Hardness | TCT: HRA 89~93, Tool steel: HRC53~65 |
| Packaging | wooden box with anti-rust film inside |
| Application | For slitter machine, rolling mill equipment etc. |
Application of the Sheet metal slitter machine Rotary slitting knives for metal sheet processing:
1. Normally for hot rolling processing: 1mm~12.7mm mild steel sheets, stainless steel sheet etc.
2. Normally for cold rolling processing: 0.02mm~3.2mm carbon steel sheets, stainless steel sheets, galvanized sheets etc.
You may also need below items:
Rotary shear blades
Rubber bonded stripper rings
Metal distance rings
Plastic spacers
Separator Discs
Clamping nuts with grease
Straight shear Blades
Scrap Chopping Knives
Senda starting from 1998, focus on the quality of products and provide better service. Now we have over 100 workers, CNC lathes, High precision internal and external circular grinding machines, heat-treatment furnaces grinding machines and inspection machines.
|
|
