SENDA for metal processing solutions.
5 Years
| Ask Lasest Price | |
| Brand Name : | SENDA |
| Model Number : | SD004 |
| Certification : | ISO9001 |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Delivery Time : | around 35days |
Description | Metal Slitting Knife Blade | Blade Grinding | Sandwheel Grinding 60 Meshes | |
Blade Material | H13, T10, 9CrS, 6CrW2Si, Cr12MoV, Alloy etc | Blade Edge Grinding Fixture | Fixtures Designed Accoding to Grinding Process | |
Application | For Shearing metal etc | Blade Production Process | Raw Material Stamping, Heat Treatment, Fine Grinding etc | |
Raw Material Process | Laser Cutting / Wire Cutting, Forging or Stamping | Inspection Methods | Callipers or Projector | |
Heat Treatment Method | High temperature heat treatment | Cutting Ways | Slitting, Shearing, Cutting, Shredding and Pulverizing | |
Cutting Edge Angle | By custom | Transport Package | Wooden box / Carton box | |
Hardness | 36 to 65 H.R.C | Specification | by standard or by custom | |
Surface Coating (optional) | Enp, Nickel Plating, Titanium Nitride Plating | Trademark | XINMECHAN and OEM ODM | |
Blade Precision | -/+0.01mm to -/+0.1mm | Origin | Jiangsu, China | |
Applications | Metal processing and manufacturing industry etc | Production Capacity | 200000pcs/Month |
Knives for Metal Scrap Recycling and Pipe Mill, Profile Production
Senda support the metal scrap recycling industry with efficient blades
and knives.
Including but not limited: scrap shear knives, alligator shears,
baler shears, demolition shears, guide knives, shim plates, wear
plates, scrap chopper knives, rotary shredders and granulators,
knives for stationary and mobile shears, etc.

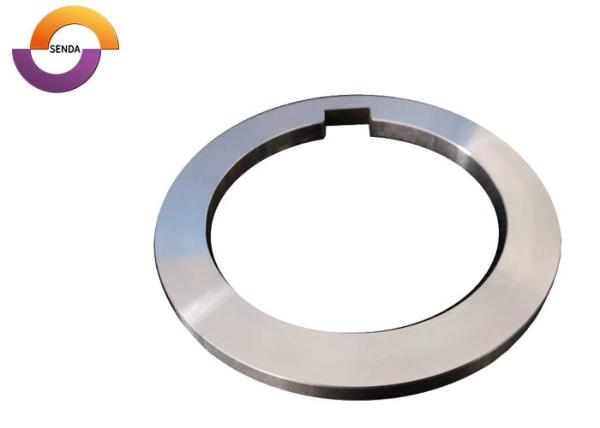

Senda Rotary slitter knives are available in adifferent grades of proprietary steel(carbon steel, copper, stainless steel, aluminum etc) to meet various needs. In order to accommodate many types of target steel materials from ordinary steel coils to high-tensile steel coils, SUS steel, electromagnetic steels and non-ferrous metal steels etc, we consider the specifications and select the correct material with best hardness, precision, and surface treatments to meet customer expectations. To improve the lubricity of rotary slitter knives, we can do mirror finished slitter knives featuring a surface roughness of Ra 0.1um.
Brand: Senda
Country of Origin: China
Material: SKD11,D2, M2, Cr12MoV, LD
Size: Customized
Inner Diameter tolerance: + 0.02mm
Thickness tolerance: +- 0.001mm
Flatness: ≤ 0.002mm
Parallelism: ≤ 0.002mm
Concentricity: ≤ 0.02mm
Surface roundness: Ra 0.1um
Hardness Range: Tool steel: HRC55~~57
Application: Tinning Lines for slitter machin use
Our Services:
Besides providing the high precision rotary slitter toolings, we
can also provide corresponding services:
1. Design the slitter knives to meet your requirements of slitting
system
2. Check and solve questions when happened during slitting
3. Regrinding the slitter toolings
Senda starting from 1998, focus on the quality of products and provide better service. Now we have over 100 workers, CNC lathes, High precision internal and external circular grinding machines, heat-treatment furnaces grinding machines and inspection machines.
|
|
