SENDA for metal processing solutions.
5 Years
| Ask Lasest Price | |
| Brand Name : | SENDA |
| Model Number : | SD005 |
| Certification : | ISO9001 |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Delivery Time : | 25 days |

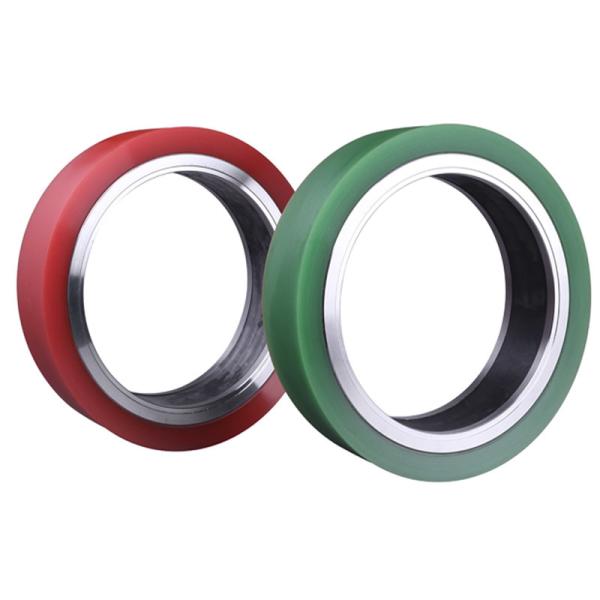

Senda manufactures rubber bonded stripper rings made of hardened alloyed
tool steel like EN9/EN 31. The stripper rings are used together
with the spacers for the exact positioning of rotary slitter knives
on the slitter arbor and for precisely adjusting the knife
clearance. Graduated in thickness from 3 to 100 mm (in exceptional
cases up to 250 mm) Different colors Special dimensions of steel
cores for trimming systems
Divided spacers Excellent oil and abrasion resistance
| Brand | Senda |
| Country of Origin | China |
| Material | S45C+PU or SUJ2(52100)+PU |
| Thickness tolerance | +- 0.002 |
| Diameter tolerance | +0.01 |
| Flatness | ≤0.003 |
| Parallelism | ≤0.003 |
| Concentricity | 0.02 |
| Hardness | 75-85HA |
| Packaging | wooden box with anti-rust film inside |
| Application | slitter machine assembly |
To control the width of materials during slitting, and protect the surface of the metal coils in slitting.
Senda starting from 1998, focus on the quality of products and provide better service. Now we have over 100 workers, CNC lathes, High precision internal and external circular grinding machines, heat-treatment furnaces grinding machines and inspection machines.
|
|
