    Rotary Knives Slitters Shear Slitting Knives Blades

    Ask Lasest Price
    Brand Name : SENDA
    Model Number : SD004
    Certification : ISO9001
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Delivery Time : 35days
    • Product Details
    • Company Profile

    Rotary Knives Slitters Shear Slitting Knives Blades

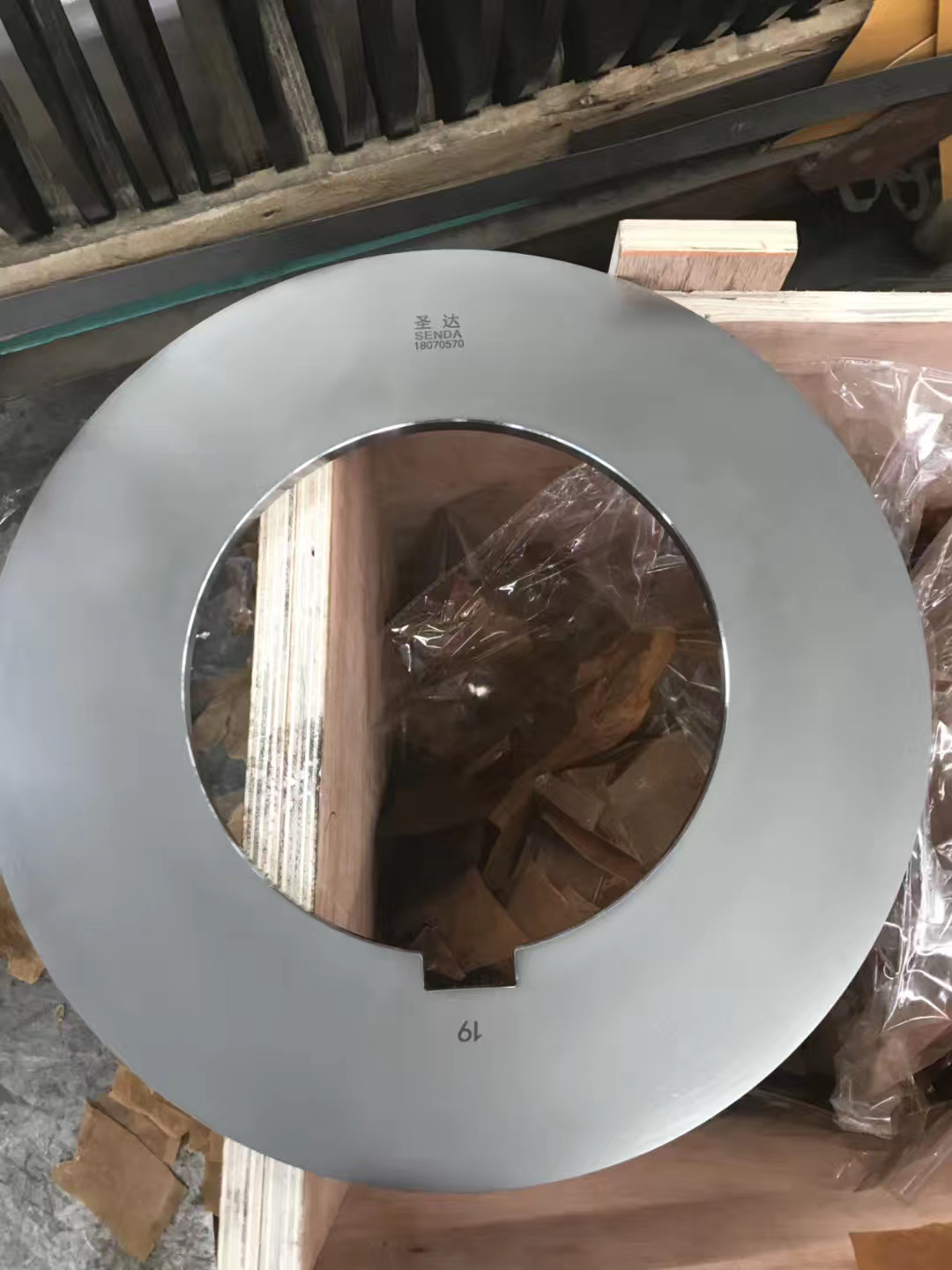

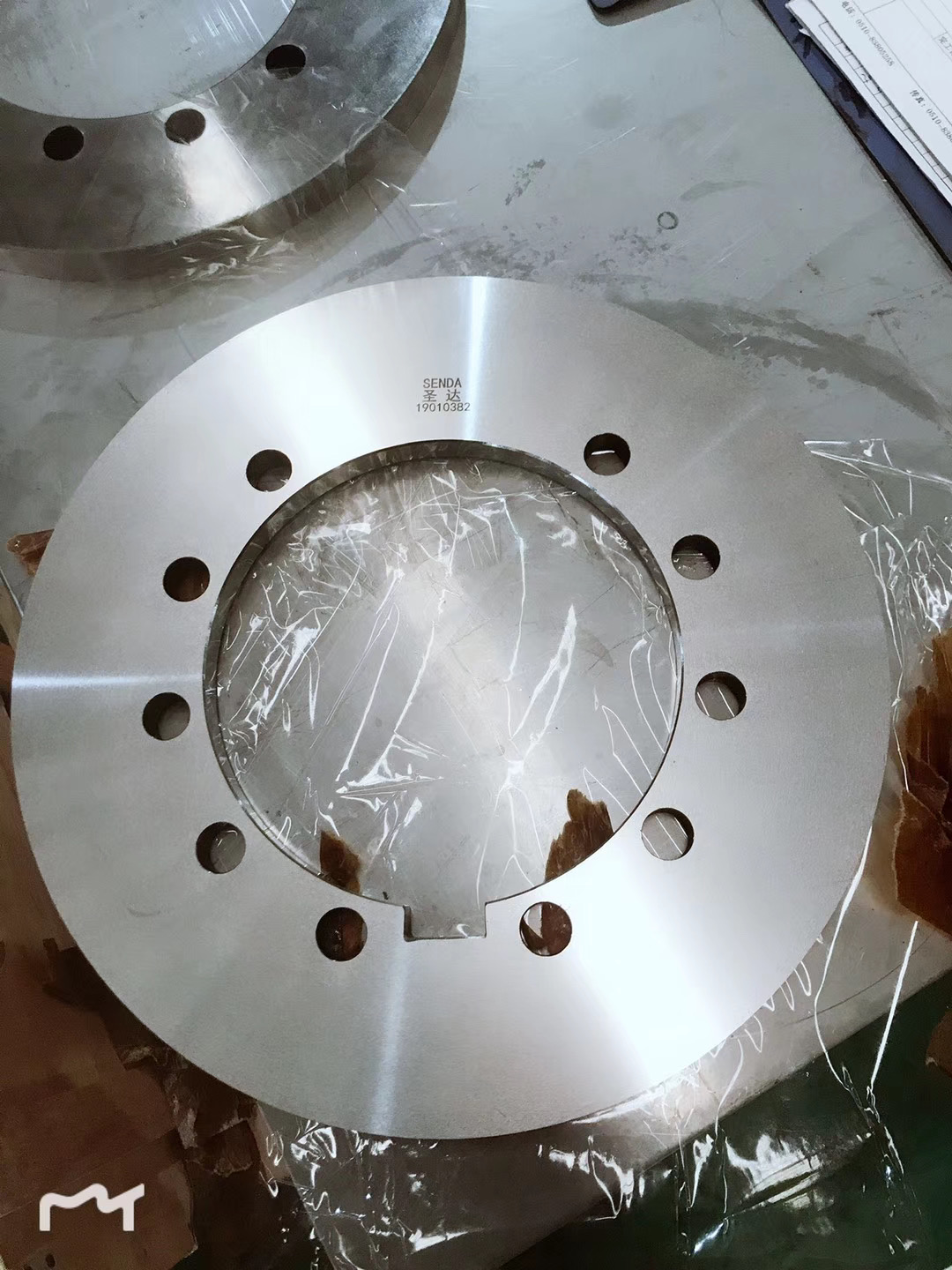

    Senda Circular Slitting Blades are applied to the slitting and slitting of high-precision metal strips. We offer metal slitter knives of Diameter up to 1500mm in various material options such as H13, H13K, LD , D2, SKD11 and so on. Our metal slitting blades are offered in hardness range of 52-64 HRC with Thickness tolerances of up to +/- 0.001mm. We offer flatness within +/- 0.002mm and Parallelism tolerances within 0.002mm.


    Slitting blades cut for cold milling coil, we often use LD, HMY material for thick plate.

    And for hot milling coils, we often recommend to use H13, H13K, HMB material to do the slitting.


    BrandSenda
    Country of OriginChina
    MaterialSKD11,D2, M2, Cr12MoV, LD etc
    Size:Customized
    Thickness tolerance+- 0.001mm
    Inner Diameter+0.02mm
    Flatness≤0.002mm
    Parallelism≤0.002mm
    Concentricity≤0.02mm
    Surface roundnessRa 0.1um
    HardnessTCT: HRA 89~93, Tool steel: HRC53~65
    Packagingwooden box with anti-rust film inside
    ApplicationFor Tinning lines, galvanized lines, rolling mill equipment etc.





    Our Services:
    Besides providing the high precision rotary slitting tools, we can provide corresponding services:
    1. Design the slitting blades to meet the requirements of slitting system
    2. Check and solve questions when happened during slitting
    3. Regrinding the slitting tools


    You may also need below items:

    Rotary blades
    Rubber rings
    Metal distance rings
    Plastic spacers
    Separator Discs
    Clamping nuts with grease
    Straight Blades
    Scrap Chopping Knives


    Senda starting from 1998, focus on the quality of products and provide better service. Now we have over 100 workers, CNC lathes, High precision internal and external circular grinding machines, heat-treatment furnaces grinding machines and inspection machines.
