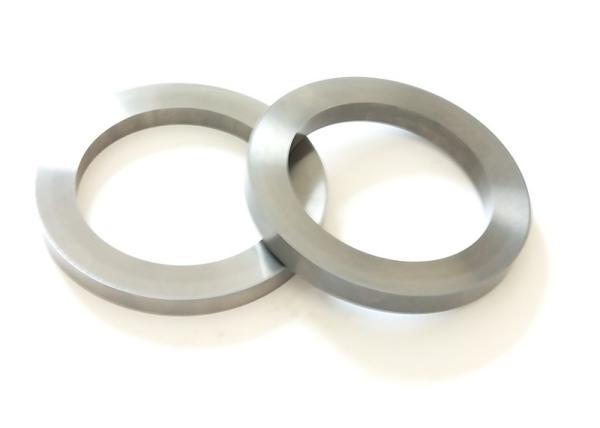

rolling mill circular shear blades for copper coil processing
Senda circular shear blades for metal coil processing are mainly applied to slitter machine. Our circular slitter blades or rotary metal slitting blades are designed and manufactured to withstand the heavy-duty application of various grades of material that require heavy shearing force to be processed.
| Brand | Senda |
| Country of Origin | China |
| Material | M2, HSS, D2, SKD11 etc |
| Size: | Customized |
| Thickness tolerance | +- 0.001mm |
| Inner Diameter | +0.02mm |
| Flatness | ≤0.002mm |
| Parallelism | ≤0.002mm |
| Concentricity | ≤0.02mm |
| Surface roundness | Ra 0.1um |
| Hardness | HRC62~~65 |
| Packaging | wooden box with anti-rust film inside |
| Application | steel processing plant |
Application of the circular shear blades for copper coil
processing:
1. Normally for hot rolling: 1~12.7mm cstainless steel plates sheet,arbon steel coils etc.
2. Normally for cold rolling: 0.02~3.2mm stainless steel plates, carbon steel plates, galvanized plates etc.
You may also need below items:
Rotary blades
Plastic spacers
Straight Blades
Scrap Chopping Knives
Separator Discs
Clamping nuts with grease
Rubber rings
Metal distance rings
Senda starting from 1998, focus on the quality of products and provide better service. Now we have over 100 workers, CNC lathes, High precision internal and external circular grinding machines, heat-treatment furnaces grinding machines and inspection machines.
|
|
